WHY

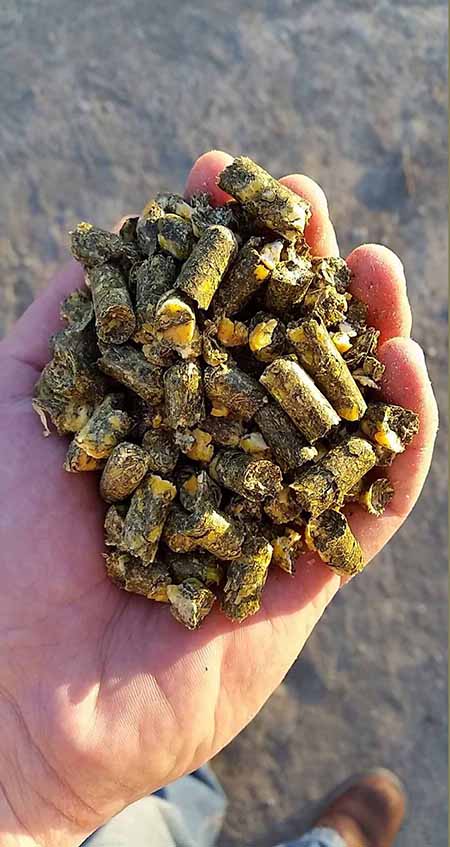

PELLETIZED FEED

Why feed your animals with pelletized feed?

Pelletized feeds have a 145% higher conversion ratio

Better results with growth in animals

Reduces respiratory diseases in animals due to less dust inhalation

You determine what you feed your animals and in what ratio

Eliminates selective feeding habits

Decrease wastage of loose feed by up to 30% when pelleted

Pelletized feed takes up much less storage space

Pelletized feed can be stored for longer and with less wastage

Better handling properties and a cleaner product

Feed can be transported more easily

DIFFERENCE

PELLETS VS HAY

Hays vary greatly in quality. Quality depends on the maturity of the plant when harvested, extent of mechanical damage, and the method used in drying. Legume hays (alfalfa, lespedeza, birdsfoot trefoil, and clover) provide higher levels of protein, calcium, and vitamin A (carotene) than do grasses. Grass hays (timothy, orchardgrass, fescue, and smooth bromegrass) are lower in calcium and protein and higher in fiber than legumes. Where both legumes and grasses are available, a mixed hay is an ideal forage for animals. As the plant matures, it becomes less nutritious and loses digestibility. All hay is best .harvested before one-half of the plants have headed out or bloomed. Pure legume hays should be fed to growing animals and lactating animals, because of their very high calcium and protein requirements. Pure alfalfa may be too rich in energy and protein for performance, and has more calcium than is needed for pregnant animals.

As more performance (work) or growth is expected of an animal, a proportionately larger amount of concentrates must be fed. Generally, most of the energy, phosphorus and some of the protein must come from the concentrate. Oats are a popular grain for animals that are palatable and have a high protein and fiber level. Corn is another popular grain to use in animal rations. It is high in energy but low in both the quantity and quality of protein. Corn is often referred to as a heavy grain because it is denser and higher in energy per unit weight than oats. Corn is usually the most economical energy source.

Grains (and all other feeds) should be fed by weight rather than by volume. The nutrients are expressed "per pound," thus, it is necessary to know how many pounds are being fed. It is beneficial to crack, roll, or crimp grains to break the outer shell thereby allowing more efficient digestion and use of the grain. But this is not inexpensive and often it is more economical to feed 5 to 6% more whole grain. Processed grains are dustier and don't store as well for extended times as whole grains. Bran has traditionally been added to animal diets to serve as a fiber source and a laxative. It can serve as a good source of energy and protein, but usually it is added at very low levels and the fiber content is negligible compared to hay. It would be more economical to feed corn and soybean meal than bran. All this information are taken into consideration when compiling a ratio for a specific type of animal.

PELLETS FOR

SHEEPS & GOATS

Nutrition Value

Protien g/kg	124	Cobalt mg/kg	0.25
RDP g/kg	62	Copper mg/kg	6.2
NDP g/kg	43	Iodine mg/kg	0.25
Ureum g/kg	5	Iron mg/kg	27
Energy TVV g/kg	536	Manganese TVV mg/kg	18
Energy ME g/kg	8.1	Zink mg/kg	18
Fat g/kg	27	Selenium mg/kg	0.2
Fiber g/kg	303	Vitamin A IE/kg	4000
Calcium g/kg	6.4	Vitamin B1 mg/kg	4
Phosphor	1.8	Vitamin D3 IE/kg	1000
Magnesium g/kg	1.8	Vitamin E mg/kg	10
Sulphur g/kg	2.1	Dry material g/kg	892

PELLETS FOR

RACING HORSES

Nutrition Value

Protien g/kg	127
RDP g/kg	85
NDP g/kg	34
Energy TVV g/kg	705
Energy VE MJ/kg	12.4
Fat g/kg	56
Fiber g/kg	94
Calcium g/kg	7.6
Phosphor g/mg	4.8
Magnesium g/kg	2.3
Sulphur g/kg	1.9
Sodium g/kg	4
Dry material g/kg	896

PELLETS FOR

FOAL

Nutrition Value

Protien g/kg	142
RDP g/kg	92
NDP g/kg	42
Ureum g/kg	0
Energy TVV g/kg	631
Energy VE MJ/kg	11.1
Fat g/kg	30
Fiber g/kg	160
Calcium g/kg	7.6
Phosphor	3.4
Magnesium g/kg	2.6
Sulphur g/kg	2
Sodium g/kg	2.7
Dry material g/kg	894

PELLETS FOR

WILD ANIMALS

Nutrition Value

Protien g/kg	159
RDP g/kg	93
NDP g/kg	47
Energy TVV g/kg	649
Energy ME g/kg	9.9
Fat g/kg	27
Fiber g/kg	162
Calcium g/kg	11.1

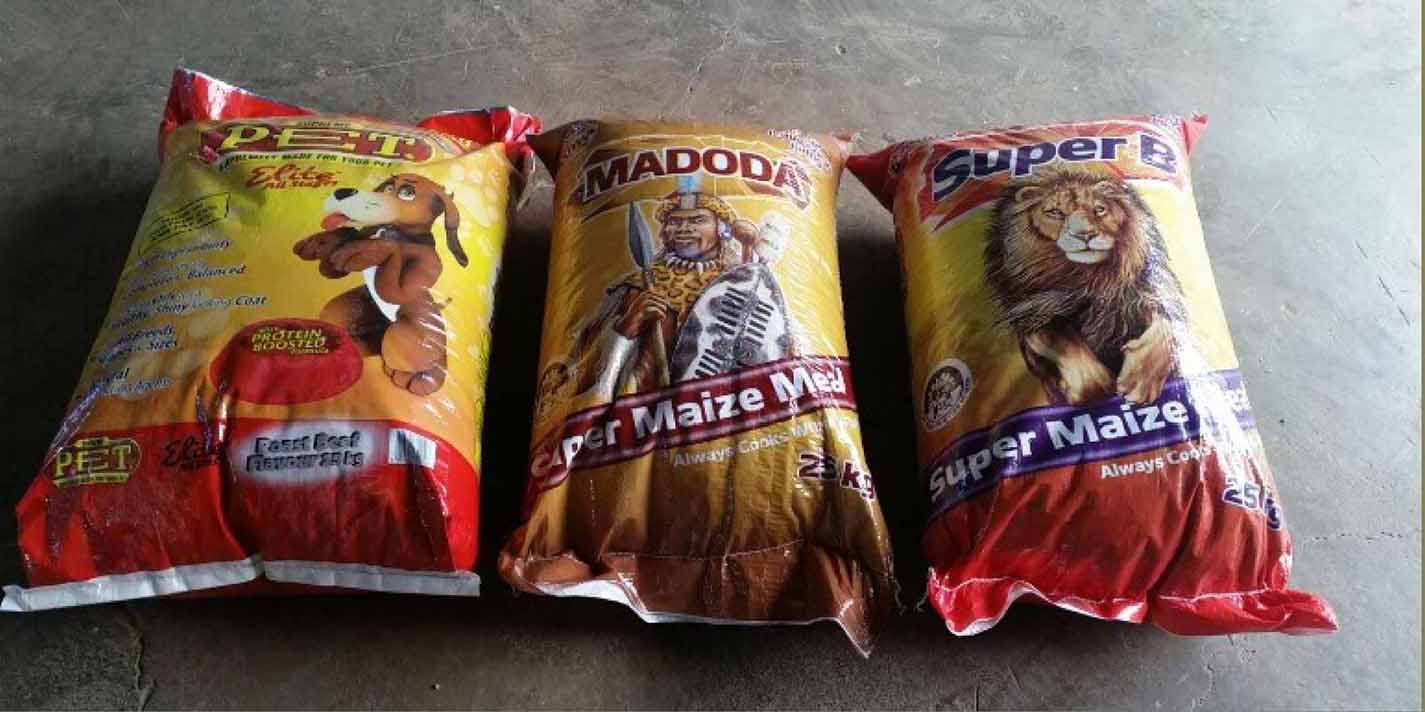

PRODUCT

PACKAGING

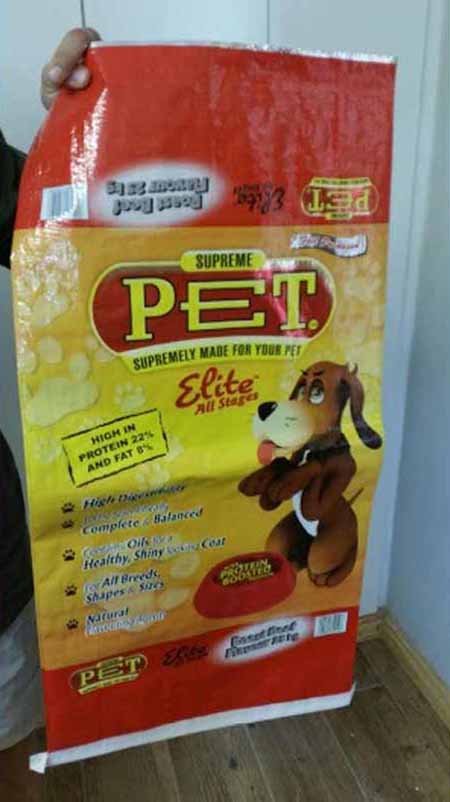

You can send your design and we can print and pack it according to your requirements. See the below examples

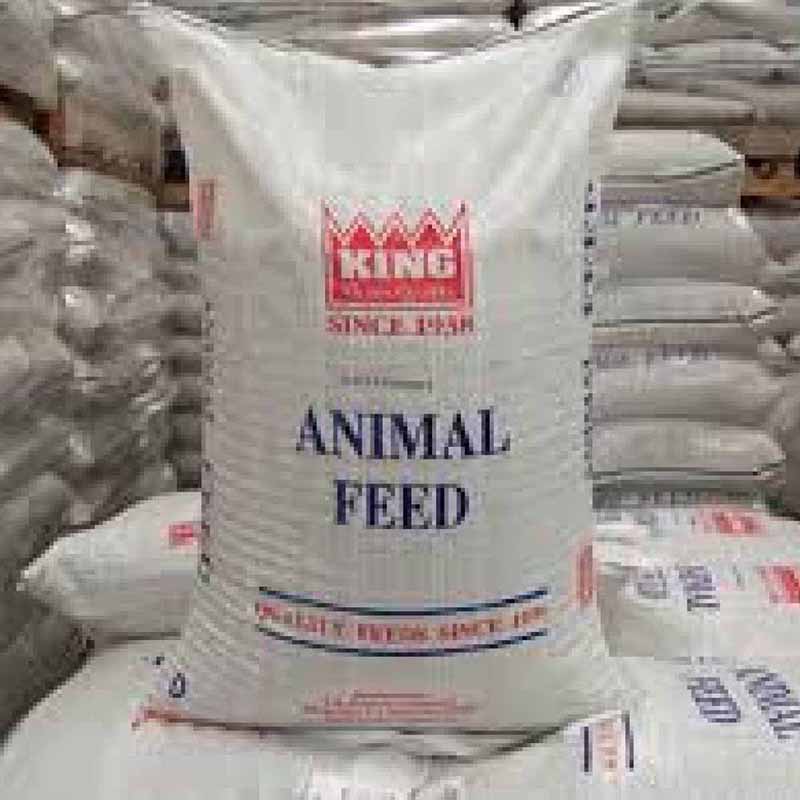

50 Kg Pack

ELECTRIC

FENCE SYSTEMS

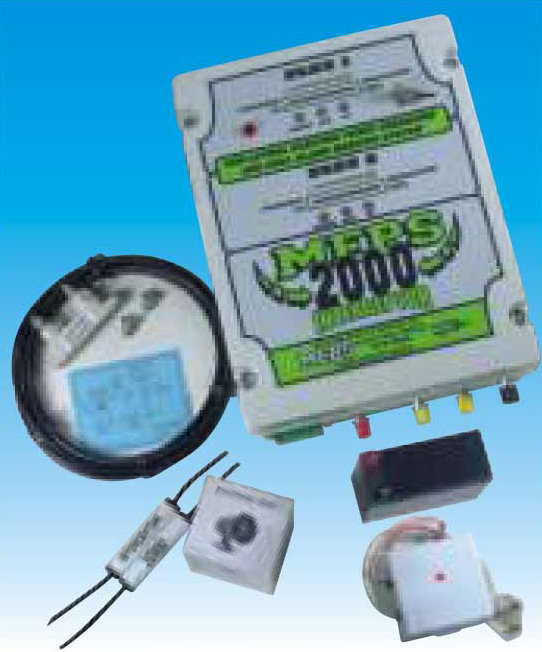

MEPS Interceptor 2000

2 Zone sytstem, 2 built-in alarm monitors

Ideal for use in high density residential areas

Low power consumption - battery backup

2 Zone high voltage fence alarm system

Built in fence alarms for both zones

Bar graph display of fences power on zones

Gate monitor facility for both zones

Latched strobe light output

Latched contacts to connect to Security system

Siren output sounds for 1 min at alarm conditions

Built in buzzer - Complies to International Regulations

Interceptor 2000 (2-Zone system)

	07-16-000
Power output	7.8 Joules
Voltage output	10500 V
Voltage 500 Ohm	8000 V
Current cons	1.2A @ 12Vdc

MEPS 50 Compact MK6 & MK5 Systems

1 Zone built-in alarm monitor

To be used for single zone monitored electrified security fences.

Compact Features

Easy to install (user friendly)

Compact design

Ideal for use in high density residential areas

Low power consumption - battery backup

Plug in AC transformer

Complies to international regulations

Monitor Features

Built in fence alarm

Bar graph display of fence power areas

Gate monitor facility

Latched strobe light output

Latched contacts to connect to security systems

Siren output sounds for 1 min at alarm condition

Built-in buzzer

	07-09-000	07-10-000
	A. Medium Power Compact MK 5	B. High Power Compact MK 6
Power output	6 Joules	7,8 Joules
Voltage output	9000 V	10500 V
Voltage 500 Ohm	7000 V	8000 V
Current cons	500 mA @ 12Vdc	700 mA @ 12Vdc

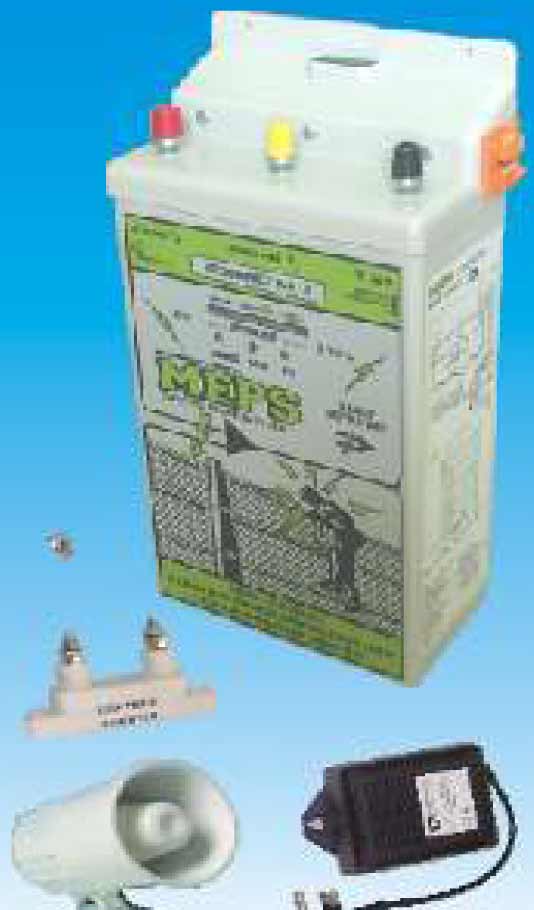

MEPS 50 Compact MK4 System

1 Zone built-in alarm monitor

The MK4 electric fence energizer/alarm system is specifically designed for short distance single zone monitored fences (Up to 5km total live wire)

Compact powerful energizer (User friendly)

Microprocessor alarm monitor

Ideal for wall-top fencing

Visual fence status indicators

Secure on/off key-switch

Built-in battery back-up power source

Built-in charger

Facility to accommodate siren, strobe, light, dry contacts etc.

Complies to international regulations

	07-06-000
Power output	4.6 Joules
Voltage output	7000 V
Voltage 500 Ohm	5200 V
Current consumption	180 mA @ 12Vdc

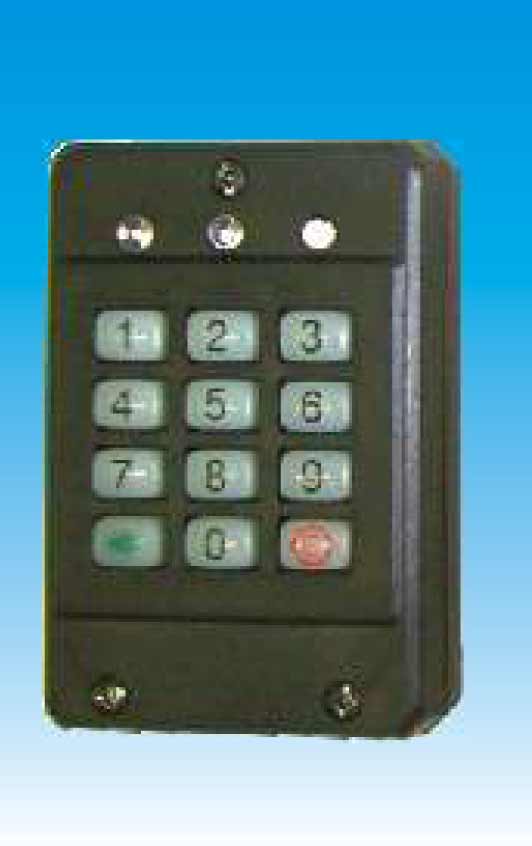

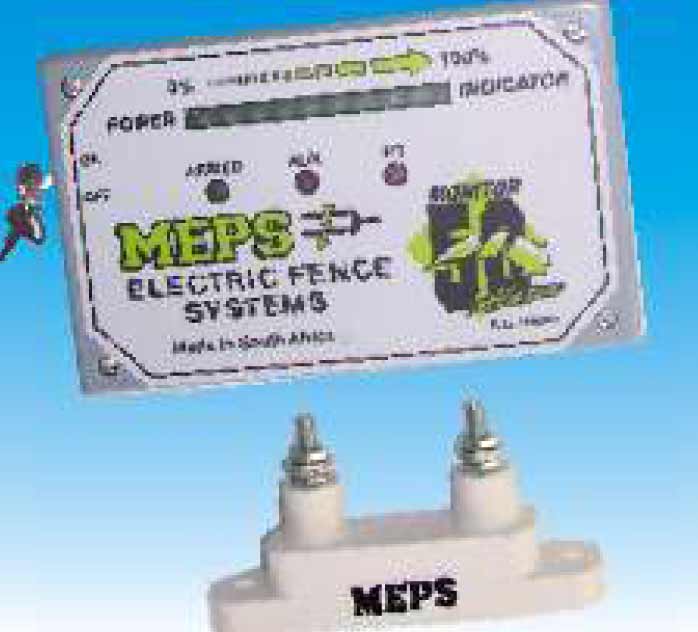

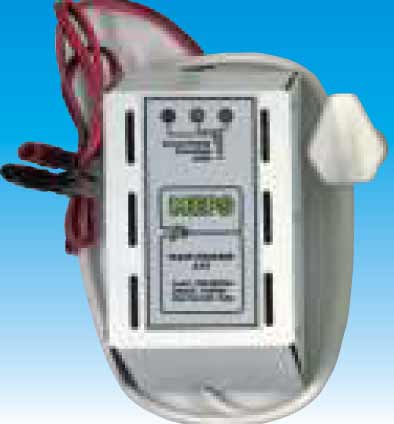

Compact Keypad

To add extra security to the MEPS compact security systems, this keypad/monitor is the answer. Install it remotely from the Meps compact/MK4/5/6 or Interceptor systems and you are able to activate or deactivate the Alarm/Monitor via its 4 - digit security code you programmed. It also has visible fence status indicators and a built-in buzzer to be alerted at alarm activation.

FEATURES

Programmable 4-digit code

Switched 12Vdc output to control Compact/MK4/5/6 or Interceptor

Two zone remote monitor indicators

Built-in buzzer

Audible key-click

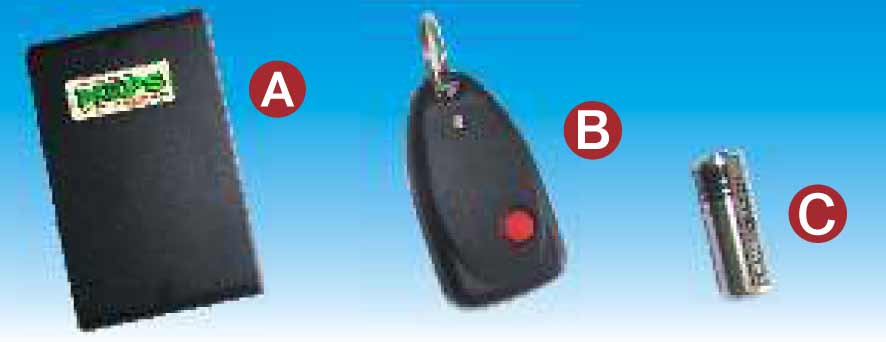

Optional Extras

A: Receiver
B: Remote transmitter (Code hopping)
Remote Battery
(These options a re supplied on request only)

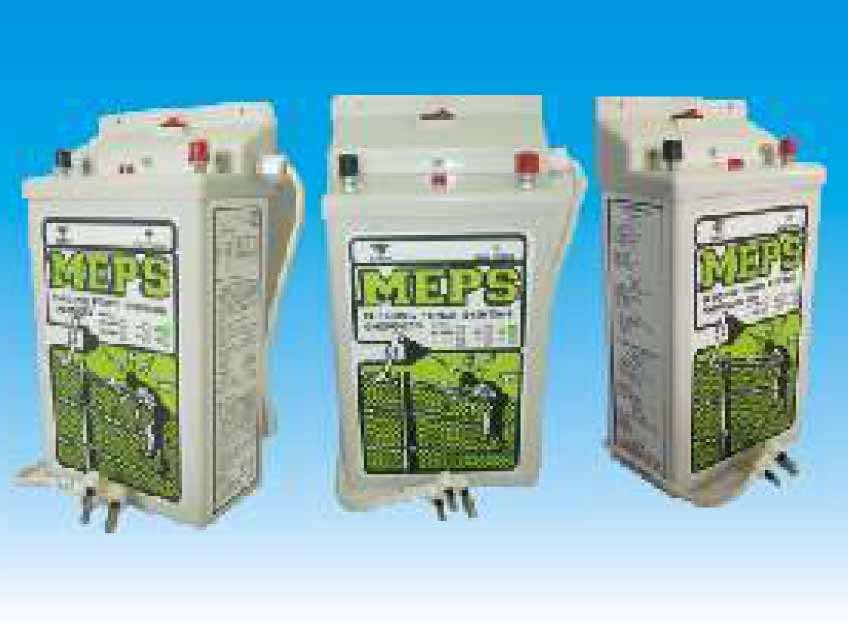

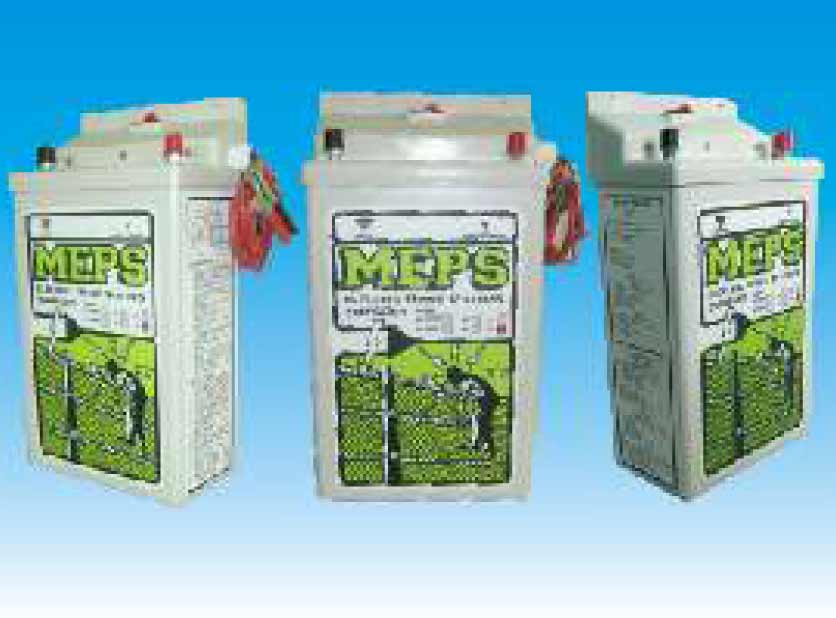

12V DC - Security/ Animal Control

Energizers operate from 12Vdc and are available in 3 models.

Ideal for the control of animals on farms as well as game fencing.

	05-00-000	04-00-000	04-01-000
	122 (Low power)	125A (Medium power)	125A(S) (High power)
Power output	4.6 Joules	6 Joules	7,8 Joules
Voltage open	7000 V	9000 V	10500 V
Voltage 500 Ohm	5500 V	7000 V	8000 V
Current cons	300mA @ 12Vdc	500mA @ 12Vdc	700mA @ 12Vdc

220V AC - Animal Control

Energizers operate from 220Vac supply only.

3 models available for the control of domestic and wild animals.

	03-00-000	02-00-000	02-01-000
	502A (Low power)	505A (Medium power)	505A(S) (High power)
Power output	45.0 Joules	6.4 Joules	7,8 Joules
Voltage open	10500 V	10500 V	10500 V
Voltage 500 Ohm	5500 V	7000 V	8000 V
Current cons	200mA	250mA	300mA

ELECTRIC PET STOP ENERGIZER

Designed specially for the control of pets

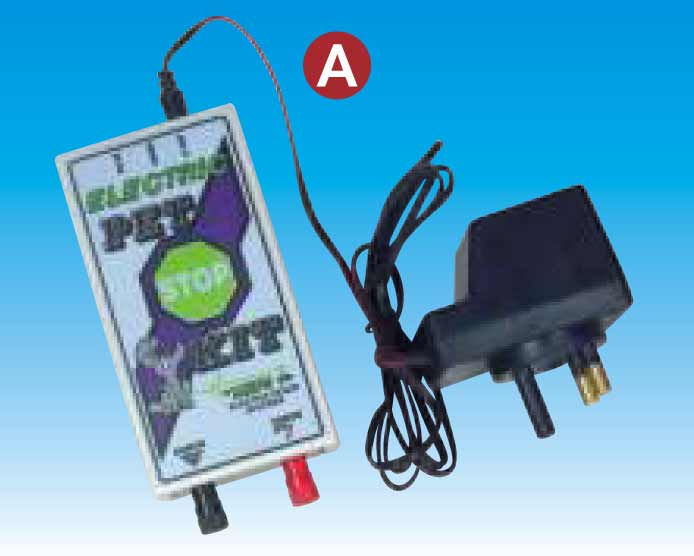

A. Pet stop Energizer with PSU : 58-00-000

Supply voltage	9Vdc to 12Vdc
Current cons	60 mA @ 9 Vdc, 100mA @ 12Vdc
Output open voltage	4000 V
Output into 500 Ohm load	2800 V
Energy over 500 Ohm load	0.9 Joules
Impulse rate	0.8Sec @ 9Vdc, 1.1Sec @ 12Vdc
Impulse duration	250uS
External power supply	220Vac to 12Vdc @ 1A
Dimensions	150 x 80 x 45 mm
Weight	150g

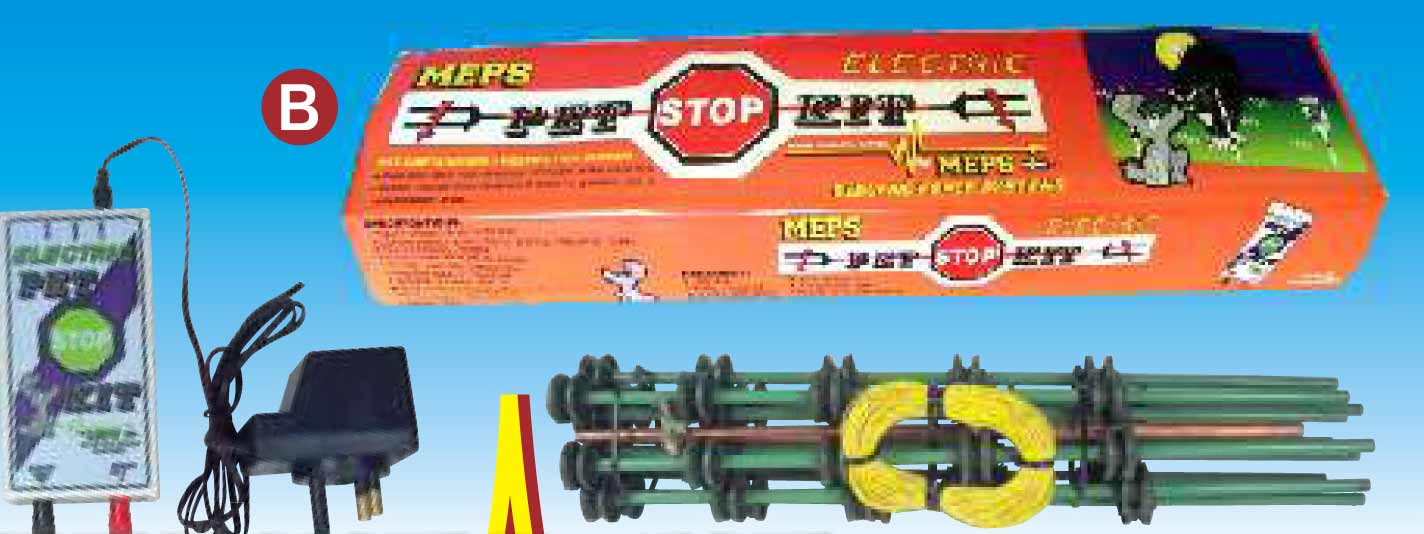

B. Pet stop kit 58-01-000

includes

Pet stop energizer with PSU

10 poles

30 insulators

30 Meters Electric wire

1 Earth rod with clamp

10 meter insulated cable

Instruction manual

12-00-000

Float charger
Used mainly in security fencing applications for float charging 12V battery. Operates off mains supply.
Ratings : input: (220Vac - 240Vac), Output : 13.8Vdc, current capacity : 2.5A.

16-02-000

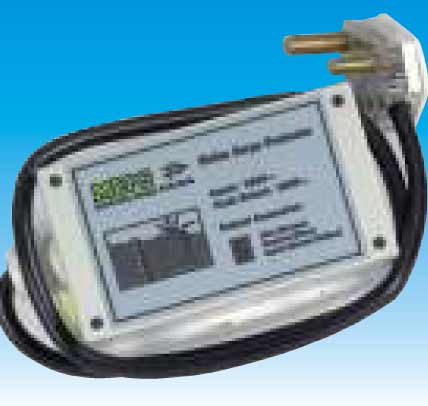

Mains surge protector
The mains protector will safeguard electrical apparatus connected to the 220Vac supply from exposure to lightning strikes and surges. Designed for easy connection to any electrical apparatus operating from mains 220Vac to 250Vac supply.

18-02-000

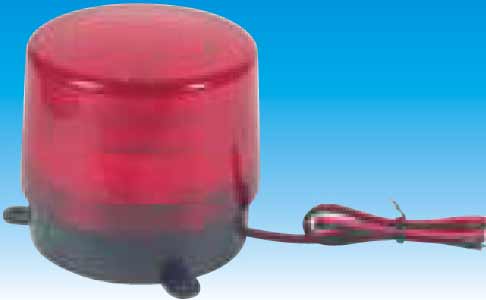

Warning flasher lamp
Used with monitored systems to give a visible indication of alarm condition.

83-00/01/02/03/04-000

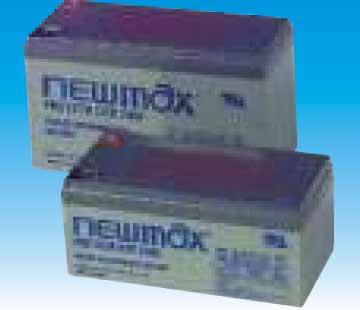

Maintenance free
12V batteries

23-00-000 24-00/01/02/03-000

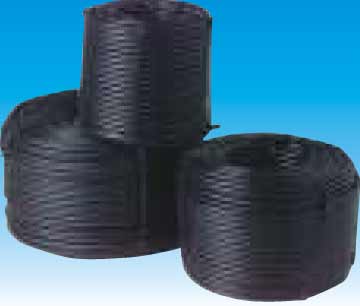

High voltage cable
Available in lengths of 1m, 50m, 100m or 200m. Thick insulation prevents spark through up to 94KVolts.

17-01-000

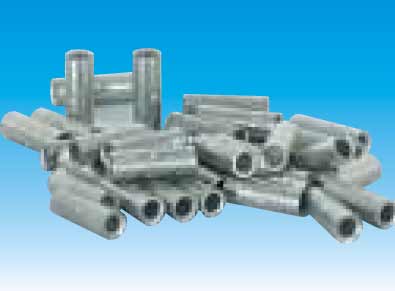

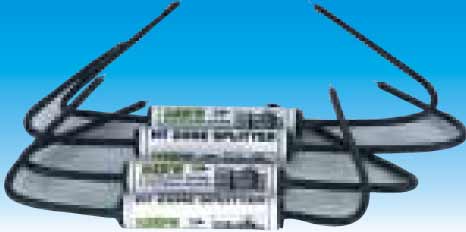

HV Zone splitter tube
Used extensively on multiple HT zone applications with either the "micro monitor" or monitor 50/2.

22-00-000

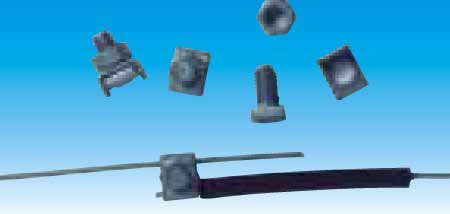

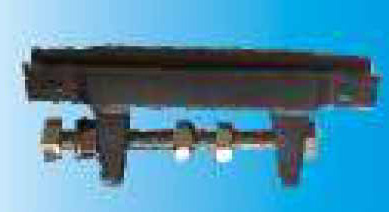

Line Clamp
Mechanically galvanized. Suitable for "all" fences. Ensures good connections.

90-05-000

A. Top guides & wheel kit.
For sliding gates.

43-02-000

B. Buzz bar.
Used on sliding gates to transfer power from the fence to the gate.

18-00-000

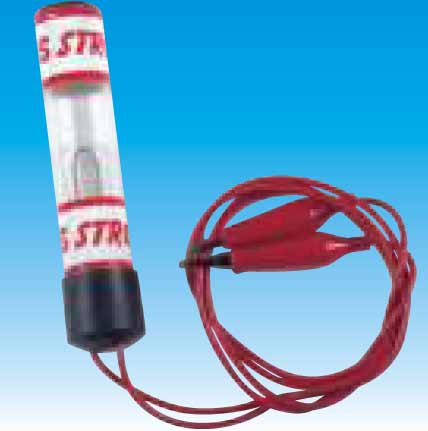

Xenon strobe light
Flashing fence strobe light, clips onto fence strands to indicate whether fence is active or not. Ideal for game fences, bomas and visual night time applications.

15-00-000/16-00-000

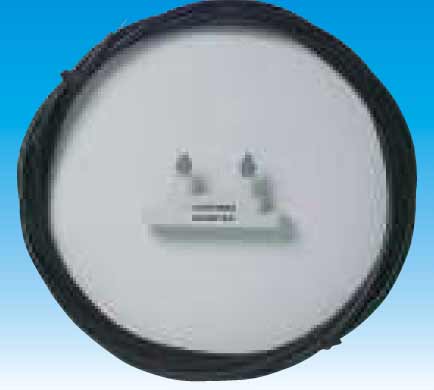

Lightning diverter and kit
Essential for lightning protection on fence. Consists of lightning diverter, 2 line clamps and coil.

11-00-000

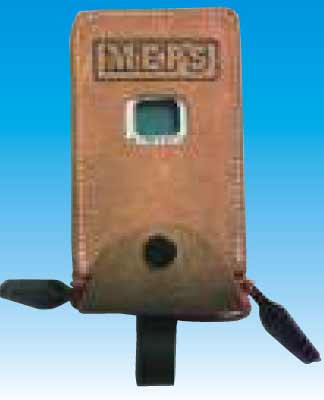

Digital voltmeter X2 Model
Assists in finding faults on electric fences. Solid state, 2 digit LCD display and powered by a 9V PP3 battery. Voltage displayed in kilo volts. This meter can measure voltages up to 12KVolt.

11-02-000

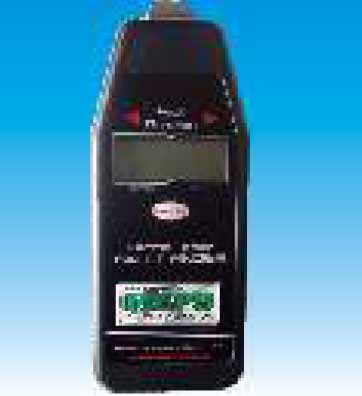

Digital directional fault find voltmeter
Assists in finding faults on electric fences - LCD display and powered by a standard 9V battery. Voltage displayed in kilo volts. This meter can measure voltages up to 9.9KVolt.

21-00/01-000

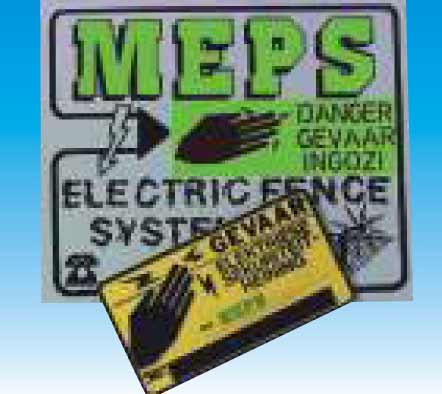

Warning signs
Small or large signs with internationaIly approved hand sign.

43-00-000

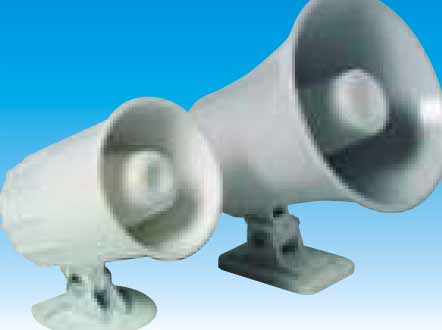

Siren
Used with monitored systems to give an audible alarm condition. Specification: 12Vdc @ 10W.

26-03/04/05-000

"Smart Bobbin" insulator
Robust, large plastic bobbin insulator designed for game, free standing and wall top fencing. Black, red or white with ultra violet protection. Suitable for "all" fences. This is the smartest insulator to date. Fits anywhere on the fence.

27-04/05/06-000

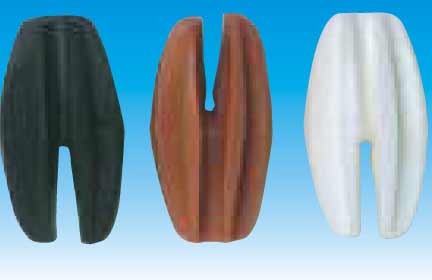

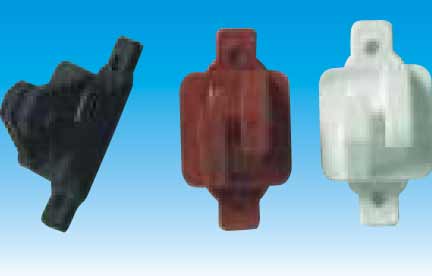

"clip-on" insulator
Black, red or white with ultra violet protection. Suitable for free-standing, punched Y-standard applications.

28-00/01/02-000

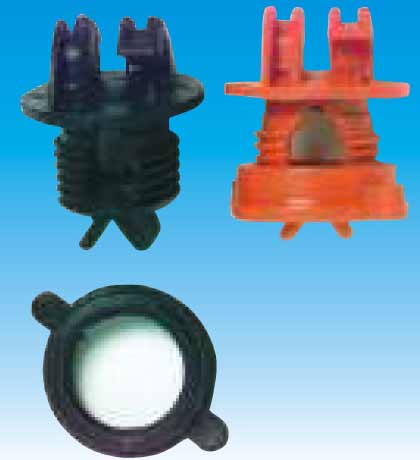

Plastic screw on insulator
Black, red or white with ultra violet protection. Screw-on 10mm round bar or ridge back steel droppers. Suitable for temporary fencing, cattle and sheep control, as well as security piggy-back rods.

27-00/01/02-000

Plastic UNW insulator
Black, red or white with ultra violet protection. Suitable for free-standing or wall top fencing.

29-00/01/02-000

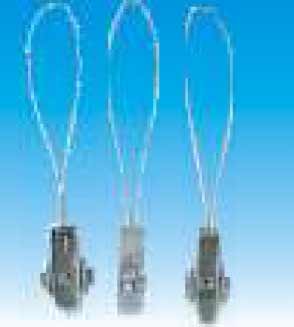

Plastic strain insulator
Black, red or white with ultra violet protection. Used for straining on free-standing and walltop fencing.

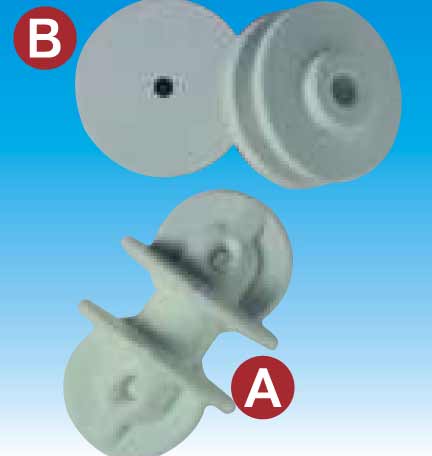

A: 31-00-000

DM Strain insulator
Fire resistant. Added insulation to avoid tracking and spark through.

B: 30-00-000

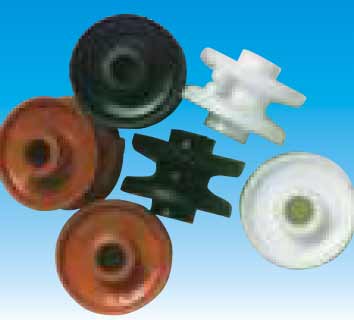

DM Bobbin insulator
Fire resistant. Suitable for free-standing and game fences.

26-00/01/02-000

Plastic Bobbin insulator
Black, red or white with ultra violet protection. Suitable for free-standing or wall top fencing.

TEMPORARY ELECTRIC FENCING

34-00-000/35-03-001

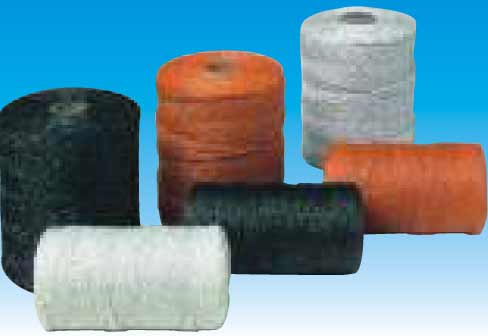

Polywire
Available in 200m and 500m rolls for easy use in strip and block grazing as well as for security .

37/44/38-00-000

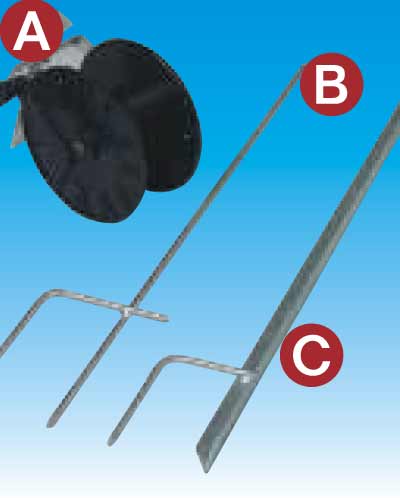

A. Poly reel : Manufactured from durable plastic. Easy to use with polywire or horse tape.
B. Metal tread-ins : 10 mm round steel rods with tread-in fork. Used in conjunction with Screw-on or UNW insulators.
C. Poly reel stand : Can accommodate up to 3 poly reels for multi strand fencing for cattle, sheep and goats

39-00-000 A: Gate break

Insulated handle for temporary gate.

41-00-000 B: Spring gate

Spring only.

41-01-000 C: Spring gate complete

Used in conjunction with gate break and insulators as temporary gate for cattle and sheep fencing.

40-00-000

Shock box free standing
Galvanized and houses the energizer and battery for protection against theft. (not supplied with solar panel and bracket, this is optional). Used for temporary strip grazing.

17-00-000

Cut out switch
Recommended to isolate fence sections, or to assist in fault finding mainly on game fences or strip grazing.

ELECTRIC HORSE FENCING

29-16-000

Horse tape.
40 mm - white

29-13-000

Horse tape.
Intermediate insulator

29-10-000

Horse tape.

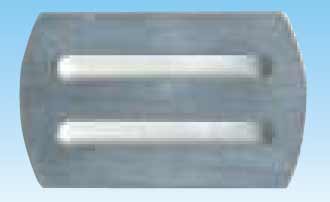

Buckle

29-11-000

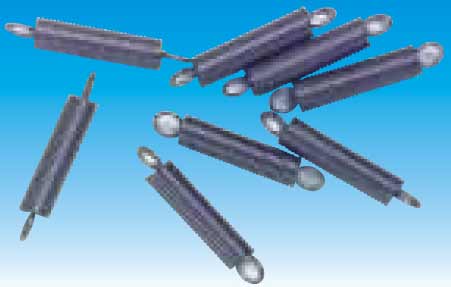

Horse tape Corner insulator.

29-09-000

Horse tape Joiner.

29-12-000

Activator plate.

Assembled complete corner insulator with tape joiner and activator plate.

ELECTRIFIED GAME FENCING

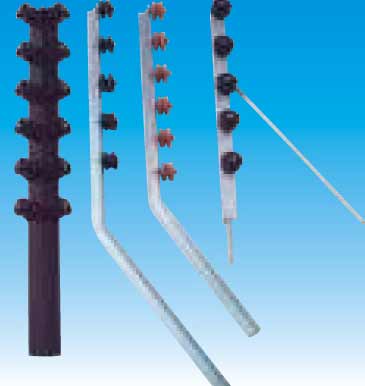

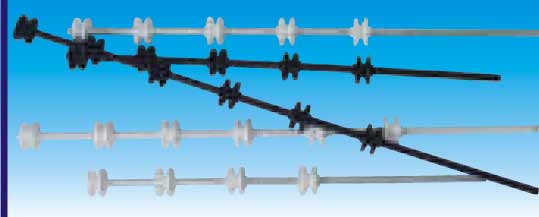

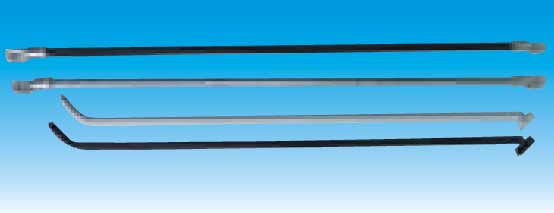

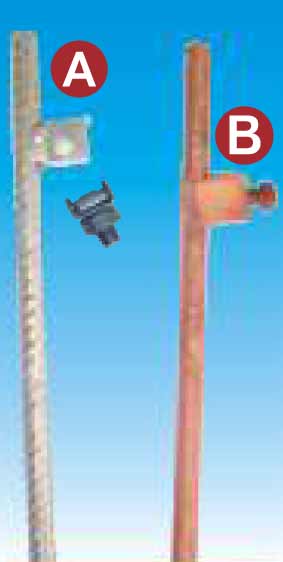

32-00-000 (short)/ 33-00-000 (long)

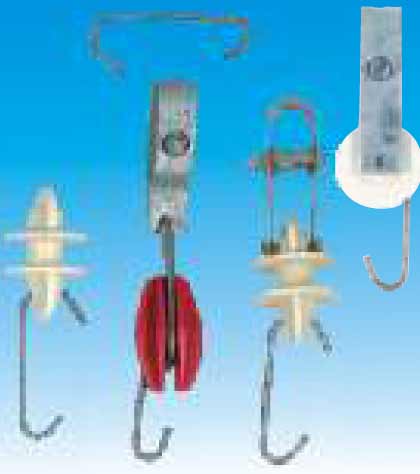

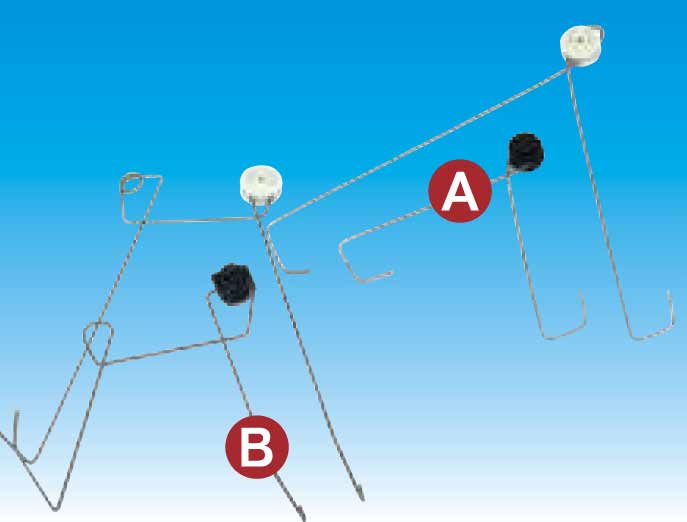

A. Single offset brackets: Galvanized springsteel brackets for use with bobbin/smart bobbin or DM bobbin insulators. Available in 225mm and 450mm lengths.

32-01-000 (short)/ 33-01-000 (long)

B: Universal double offset brackets: Extra loop incorporated to carry an earth strand. This unique design allows for all the bobbin type insulators or "clip-on" type insulators to be utilized.

40-01-000

Battery box pole mount
Galvanized insulated battery box supplied with attachment for incorporation onto shock box pole mount. (Separate battery enclosure for added system protection).

21-00/01-000

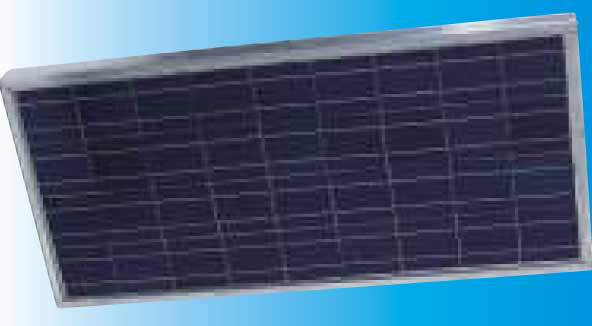

67-00-000 : Solar panel 20W.
67-03-000 : Solar panel 50W.
67-04-000 : Solar panel 64W.

17-01-000

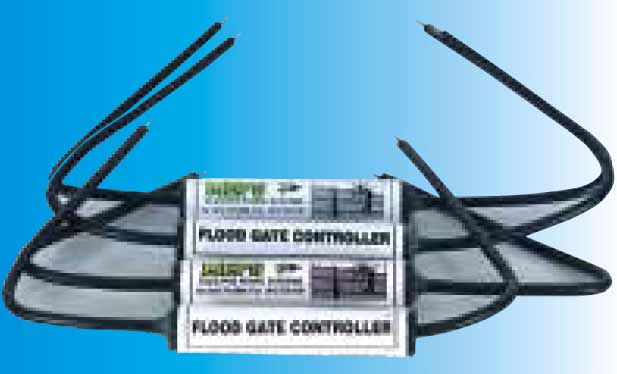

Flood gate controller
Used extensively on game fencing to prevent voltage loss/drop when fencing through flood prone sections, or river crossings.

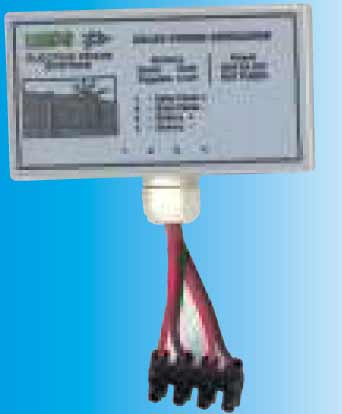

79-00-000

12V Solar panel regulator
To prevent solar panel overcharging the battery.

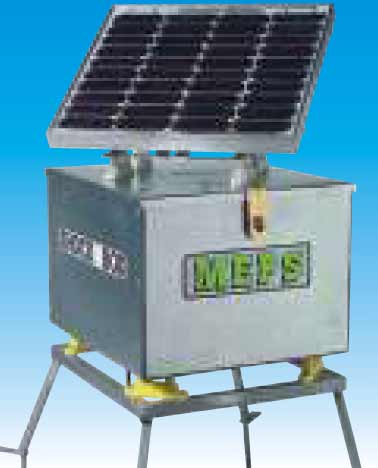

40-02-000

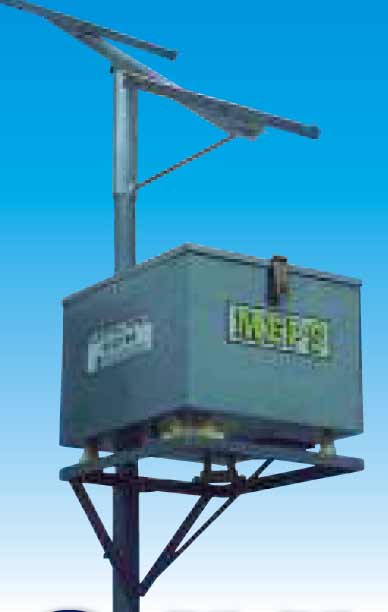

Shock box pole mount complete
Complete with solar panel bracket, galvanized insulated shock box and mounting pole. Used mainly on game fences (galvanized battery box supplied as an optional extra on request).

FREE STANDING ELECTRIC FENCING

21-00/01-000

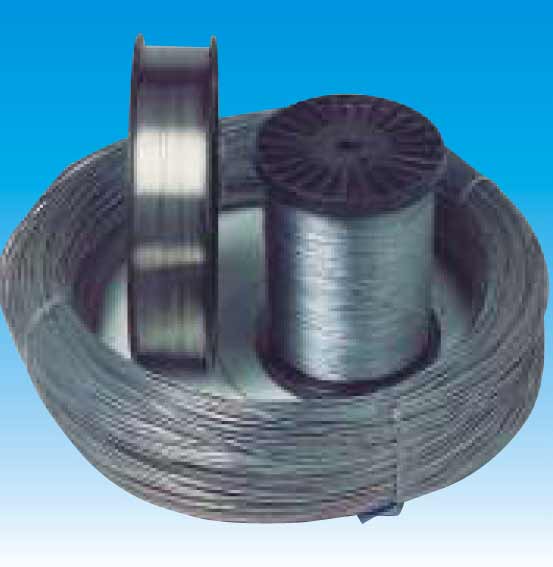

Wire.
25-02-000: Lightly galvanized steel wire 2.24mm.
25-04-000: Fully galvanized steel wire 2.24mm.
25-05-000: Galvanized braided cable.
25-05-002: Stain1ess steel braided cable.
25-08-000: Lightly Galvanized binding wire 1.6mm.
25-07-000: Fully Galvanized binding wire 1.6mm.
25-03-000: Stainless steel wire.

21-00/01-000

A: 78-01-000: Super wire Tensioners: Hot dip/electro galvanized. Attached to DM strain for added insulation.
B: 78-00-000: Speed wire Tensioners: Ensures Hot dip galvanized, tight wires at all times.
C: 78-02-000: Speed wire Tensioners (Green): Electro galvanized/Powder coated. Ensures tight wires at all times.
D: 78-01-001: Combob Tensioner: Hot dip/ electro galvanized. Attached to "DM bobbin" for added insulation.
E: 78-02-001 : Smart Combob Tensioner: Hot dip/electro galvanized. Attached to smart "bobbin" for added insulation.

A. 44-03-000 :
Galvanized.

B. 44-02-000 :
Copper Earth Spikes with clamps. Essential for your fence to achieve the best results from your energizer system.

78-05-000

Strain hooks galvanized
versatile application for speed whilst erecting, eliminates tying process.

Fencing posts, stays and intermeditaes

25-06-000

"U-Nail" Wood postnails :Ideal for fixing nail on insulators to wooden posts.

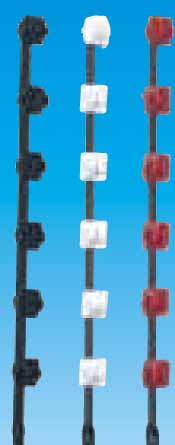

WALL TOP ELECTRIC FENCING

46-01-000

Round bar brackets
Galvanized, powder coated, painted or aluminium 5 or 6 strand insulated round bar brackets.

78-04-000

Spring hook
Stainless steel spring hooks used from which to strain off bobbin insulators in conjuction with springs.

46-07-000 Roundbar, 46-08-000 Flat bar

Stays
To accommodate wall top brackets when changing direction.

46-00-000

46-02-000

46-03-000

Flat bar brackets
Galvanized, powder coated, painted or aluminium 5 or 6 strand insulated flat bar brackets.

46-06-000/45-03/04-000

Corner brackets
Galvanized, powder coated, painted or aluminium 5 or 6 strand insulated corner brackets.

78-01-002

"Dinky" Wall top tensioners
Mechanical/electro galvanized. Ensures easy maintenance and tight wire strands at all times. Simple, quick and easy to install .

Springs
Stainless steel springs, for tensioning strands on wall top fencing from spring hooks.

84-01-000

Crimp Ferrules
Tinned copper/aluminium in-line connectors. Ensures good proper joining of connections.

50 E/U Monitor with Fence Terminator (07-02-000)

Compatable to operate off most energizer models in the industry. This unit can monitor:

The live wire on the non-lethal electric fence

The neutral wire or one gate on a closed circuit

Numerous features include HT Pavver. Indicator; warning strobe light output, dry contacts for armed response etc.

Compact high voltage fence monitor : A compact yet powerfull non-lethal electric fence monitor system. Easy to install, low power consumption, and clear alarm indicators, make this an essential system for electric fencing.

FEATURES

Able to monitor the live wire on the fence

Microprocessor controlled

High voltage input is optically insulated from sensitive electronics

Compatible to operate off most energizer models in the industry

Can be configured to activate a transmitter for remote monitoring

Current consumption less than 80mA @ 12Vdc.

Compact size, 120 x 60 x 30 (mm)

OVERLANDER (61-00-000)

Designed specially for the outdoor adventurist

Overland kit includes

MEPS 122 12V Energizer

200m Polywire

Poly Reel

Earth spike with clamp

10m HV cable

10 insulated tread ins (4 strand) used to secure camp site & equipment on overland safaris camping, fishing, game viewing, liesure trip etc.

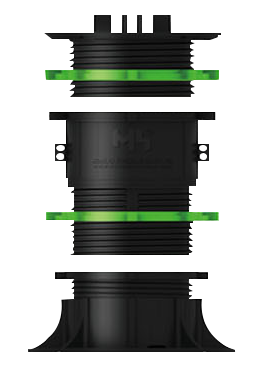

ADJUSTABLE

PAVER PADESTAL

350mm - 580mm

150mm

200mm

Head part, Dia. 150mm,
with swivel spacer
tabs 2mm/ 5mm/ 8mm/ 10mm

X 1

Extender, Dia. 120mm,
extend height of pedestals

X 3

Adjustment Ring Screw pitch
reversed Adjust height of
pedestals

X 1

Base, Dia. 200mm, with drainage
holes.

X 1

Adjustable Height

Adjustable height from 350mm to 580mm uninterrupted

Composition

1 head + 1 base + 1 adjustment ring + 3 extender + 4 fix collar + 1 spacer tab + 1 shim

Material

Polypropylene (PP), material thickness 4.5mm- 6mm: Composition 99 % PP, 10% talc, UV and black masterbatch 100% recyclable.

Dimensions

Head= diameter 150mm - surface area 176 cm2

Base+ diameter 200mm- ground surface 315 cm2

Extender= extender diameter 120m - adjustable height

Performance

Resisting UV rays , weather, Sea salt and almost all chemicals. Temperature range : -40 degree Celsius to +120 degree Celsius.

Application

Support for outdoor terraces with any kind of material: timber decking, stone, ceramic, composite material, metal, fiberglass grid. Can be placed on any stable substrate , also over insulation panels

Slope corrector from 05 - 5%

Slope correctors could compensate ground fall 05 - 5%, making ideal levelling surface. It is assembled on the top of pedestals. Clients could to use it or not with different installing confliction.

Shim

Anti- slip, reduce impact, absorb shock, compensate floor thickness difference
1mm/ 2mm thickness

Compression Test

Performed on the full (1/1), half (1/2) or quarter (1/4) Surface of the head

Position	Height(mm)	Breaking Loads(kgs)
1/1	460	3609
1/2	460	2816
1/4	460	1583

Safety Value for maximum allowable load by compression for MB- T3:

Safety Value for Pedestrian terrace: divide the load indicated in the table by 2 with a safety factor of -15%..

Safety for technical floors: divide the load indicated in the table by 4 with a safety factor of -15%..

Application Details

Space tabs thickness: 2mm, 5mm, 8mm, 10mm

Slope corrector: compensate slope 0% - 5%

Shim: anti_ slip, reduce impact, absorb shock and sound, compensate floor thickness differences

Fix Collar

Fix and lock height after adjustment,increase stability.
Standard green colour, Made in PP

ADJUSTABLE

PAVER PADESTAL

Module	Height Range	Picture	Accessory	Accessory pcs	Package	Carton size	Weight	FOB Shanghai (20% off)
Module	Height Range	Picture	Accessory	Accessory pcs	Package	cm	kg/set	(USD/ Set)
MB- T0-A	19- 30mm		1mm/ 2mm shim	x 1	400 pcs/ctn	31x31x25	0.250	$1.64
			2mm/ 3.5mm/ 5mm/ 8mm/ 10mm thickness spacer tabs	x 1	800 pcs/ctn	65x47x36
			19mm T -head + 14mm T -Base	x 1	120 pcs/ctn	53x47x36
MB- T0-B	28- 42mm		1mm/ 2mm shim	x 1	400 pcs/ctn	31x31x25	0.300	$1.80
			2mm/ 3.5mm/ 5mm/ 8mm/ 10mm thickness spacer tabs	x 1	800 pcs/ctn	65x47x36
			26mm T -head + 22mm T -Base	x 1	90 pcs/ctn	53x47x36
MB- T0-C	40- 65mm		1mm/ 2mm shim	x 1	400 pcs/ctn	31x31x25	0.340	$1.88
			2mm/ 3.5mm/ 5mm/ 8mm/ 10mm thickness spacer tabs	x 1	800 pcs/ctn	65x47x36
			38mm T -head + 33mm T -Base	x 1	66 pcs/ctn	53x47x36
MB- T0-D	60- 105mm		1mm/ 2mm shim	x 1	400 pcs/ctn	31x31x25	0.450	$2.12
			2mm/ 3.5mm/ 5mm/ 8mm/ 10mm thickness spacer tabs	x 1	800 pcs/ctn	65x46x36
			60mm T -head + Fix collar + 53mm T -Base	x 1	48 pcs/ctn	70x47x36
MB- T0-E	90- 180mm		1mm/ 2mm shim	x 1	400 pcs/ctn	31x31x25	0.540	$2.52
			2mm/ 3.5mm/ 5mm/ 8mm/ 10mm thickness spacer tabs	x 1	800 pcs/ctn	65x47x36
			80mm T -head + Fix Collar	x 1	72 pcs/ctn	54x42x50
			Adjustment Ring + 75mm T-base	x 1	48 pcs/ctn	70x47x36
MB- T1	180- 320mm		1mm/ 2mm shim	x 1	400 pcs/ctn	31x31x25	0.890	$3.72
			2mm/ 3.5mm/ 5mm/ 8mm/ 10mm thickness spacer tabs	x 1	800 pcs/ctn	65x47x36
			80mm T -head + Fix Collar	x 1	72 pcs/ctn	54x42x50
			T-Extender + Fix Collar	x 1	60 pcs/ctn	67x46x43
			Adjustment Ring + 75mm T-base	x 1	48 pcs/ctn	70x47x36

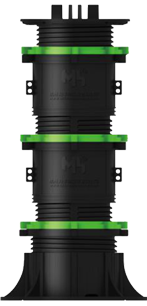

MB- T2	260- 440mm		1mm/ 2mm shim	x 1	400 pcs/ctn	31x31x25	1.240	$4.92
			2mm/ 3.5mm/ 5mm/ 8mm/ 10mm thickness spacer tabs	x 1	800 pcs/ctn	65x47x36
			80mm T -head + Fix Collar	x 1	72 pcs/ctn	54x42x50
			T-Extender + Fix Collar	x 2	60pcs/ctn	67x46x43
			Adjustment Ring + 75mm T-base	x 1	48pcs/ctn	70x47x36

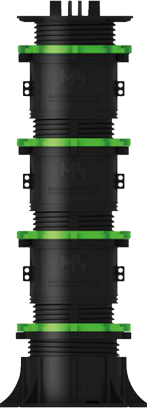

MB- T3	350- 580mm		1mm/ 2mm shim	x 1	400 pcs/ctn	31x31x25	1.590	$6.12
			2mm/ 3.5mm/ 5mm/ 8mm/ 10mm thickness spacer tabs	x 1	800 pcs/ctn	65x47x36
			80mm T -head + Fix Collar	x 1	72 pcs/ctn	54x42x50
			T-Extender + Fix Collar	x 3	60 pcs/ctn	67x46x43
			Adjustment Ring + 75mm T-base	x 1	48 pcs/ctn	70x47x36

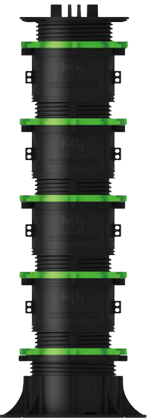

MB- T4	450- 730mm		1mm/ 2mm shim	x 1	400 pcs/ctn	31x31x25	1.940	$7.24
			2mm/ 3.5mm/ 5mm/ 8mm/ 10mm thickness spacer tabs	x 1	800 pcs/ctn	65x47x36
			80mm T -head + Fix Collar	x 1	72 pcs/ctn	54x42x50
			T-Extender + Fix Collar	x 4	60 pcs/ctn	67x46x43
			Adjustment Ring + 75mm T-base	x 1	48 pcs/ctn	70x47x36

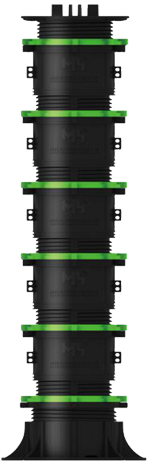

MB- T5	540- 880mm		1mm/ 2mm shim	x 1	400 pcs/ctn	31x31x25	2.290	$8.28
			2mm/ 3.5mm/ 5mm/ 8mm/ 10mm thickness spacer tabs	x 1	800 pcs/ctn	65x47x36
			80mm T -head + Fix Collar	x 1	72 pcs/ctn	54x42x50
			T-Extender + Fix Collar	x 5	60 pcs/ctn	67x46x43
			Adjustment Ring + 75mm T-base	x 1	48 pcs/ctn	70x47x36

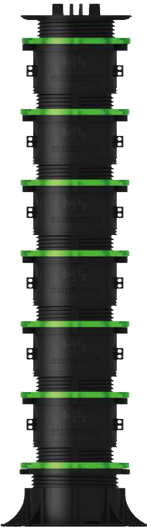

MB- T6	620- 1000mm		1mm/ 2mm shim	x 1	400 pcs/ctn	31x31x25	2.640	$9.40
			2mm/ 3.5mm/ 5mm/ 8mm/ 10mm thickness spacer tabs	x 1	800 pcs/ctn	65x47x36
			80mm T -head + Fix Collar	x 1	72 pcs/ctn	54x42x50
			T-Extender + Fix Collar	x 6	60 pcs/ctn	67x46x43
			Adjustment Ring + 75mm T-base	x 1	48 pcs/ctn	70x47x36

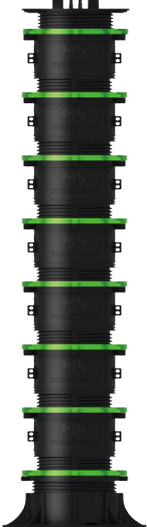

MB- T7	720- 1150mm		1mm/ 2mm shim	x 1	400 pcs/ctn	31x31x25	2.990	$10.44
			2mm/ 3.5mm/ 5mm/ 8mm/ 10mm thickness spacer tabs	x 1	800 pcs/ctn	65x47x36
			80mm T -head + Fix Collar	x 1	72 pcs/ctn	54x42x50
			T-Extender + Fix Collar	x 7	60 pcs/ctn	67x46x43
			Adjustment Ring + 75mm T-base	x 1	48 pcs/ctn	70x47x36

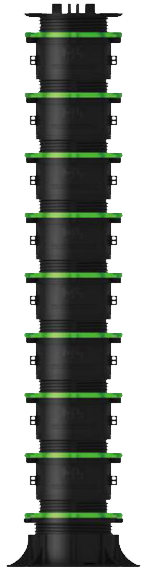

MB- T8	810- 1280mm		1mm/ 2mm shim	x 1	400 pcs/ctn	31x31x25	3.340	$11.48
			2mm/ 3.5mm/ 5mm/ 8mm/ 10mm thickness spacer tabs	x 1	800 pcs/ctn	65x47x36
			80mm T -head + Fix Collar	x 1	72 pcs/ctn	54x42x50
			T-Extender + Fix Collar	x 8	60 pcs/ctn	67x46x43
			Adjustment Ring + 75mm T-base	x 1	48 pcs/ctn	70x47x36
MB-FP-01 (12.5mm height fixed paver tile pedestal)			\|	\|	300 pcs/ctn	65x47x36	0.080	$0.75
Sloped Shim (0%-5% slope)			\|	\|	300 pcs/ctn	31x31x25	0.050	$0.15
Base slope corrector (0%-5% slope adjustable)			\|	\|	40 pcs/ctn	41x41x30	0.200	$1.05
Steel Clips 01 (steel clips for against the wall)			\|	\|	100 pcs/ctn	31x31x25	0.100	$0.35
Steel Clips 02 (steel clips for vertical tiles)			\|	\|	100 pcs/ctn	31x31x25	0.150	$0.45
Steel Clips 03 (steel clips for vertical tiles)			\|	\|	100 pcs/ctn	31x31x25	0.150	$0.45

@-2013- johnzas.com
